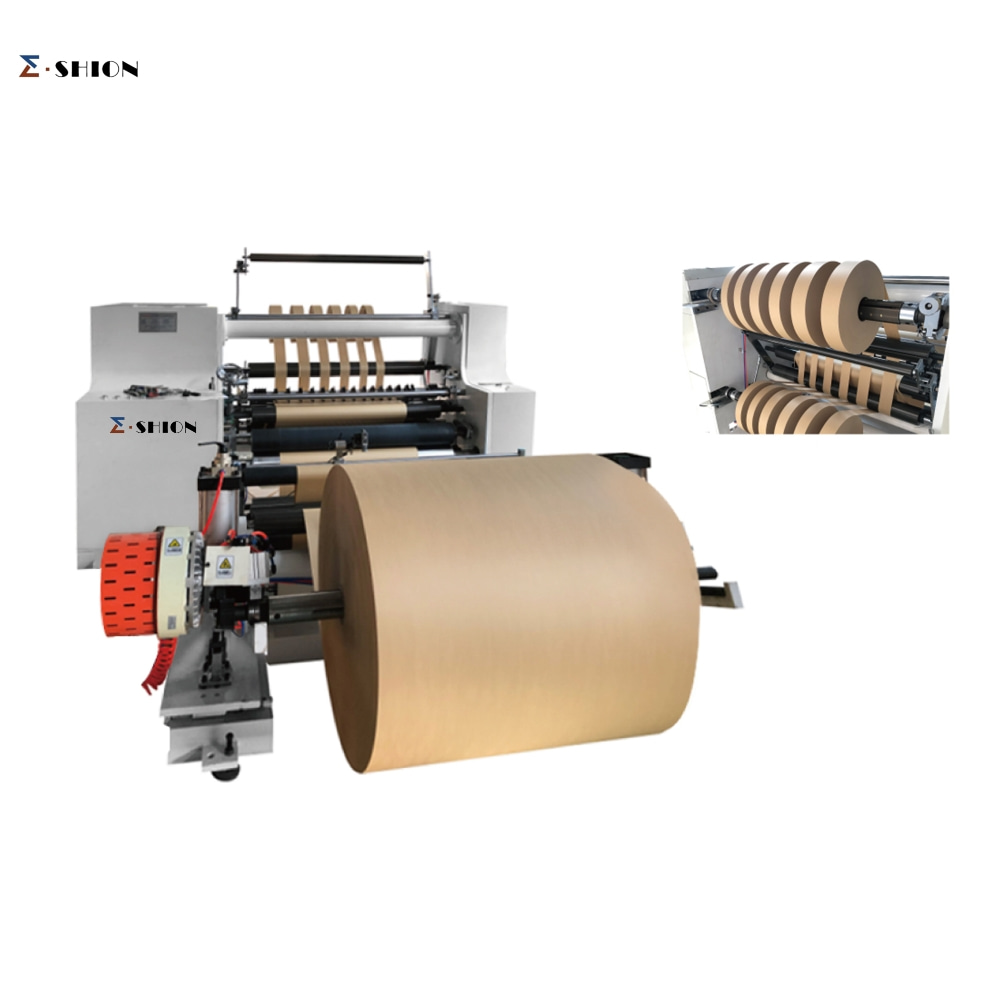

Computer Automatic Slitting Machine

Use:
This machine is suitable for slitting and rewinding of all kinds of super large coil materials, such as 30g/m²-300g/m² kraft paper, white card paper, coated paper, aluminum foil, PVC plastic, tin paper, etc.

Main Features

• The machine adopts magnetic powder tension control, automatic tension, and central coiling mode. The main engine adopts frequency conversion speed regulation to maintain balanced operation during acceleration.

• Automatic meter counting and alarm function. The winder adopts an A and B inflatable shaft structure, which is convenient for unloading and operation.

• The unwinding adopts the photoelectric automatic deviation correction system, allowing irregular materials to be cut normally.

• Automatic discharge device for longitudinal cutting waste edge of round knife and straight knife.

• Automatic feeding of air cylinder, equipped with inflatable shaft.

  ---

  Main Technical Parameters

  Parameter	ESFQ-F1100	ESFQ-F1300	ESFQ-F1600
  Model	ESFQ-F1100	ESFQ-F1300	ESFQ-F1600
  Max. Width Of Raw Material	1100mm	1300mm	1600mm
  Max. Parent Web Diameter	1200mm	1200mm	1200mm
  Max. Rewinding Diameter	600mm	600mm	600mm
  Max. Machine Speed	10-200m/min	10-200m/min	10-200m/min
  Total Power	5.5KW	7.5KW	7.5KW
  Machine Weight	2800kg	3200kg	3200kg
  Overall Dimensions	2700x2900x1800mm	3000x2900x1800mm	3300x2900x1800mm
  Min. Slitting Width	30mm	30mm	30mm
