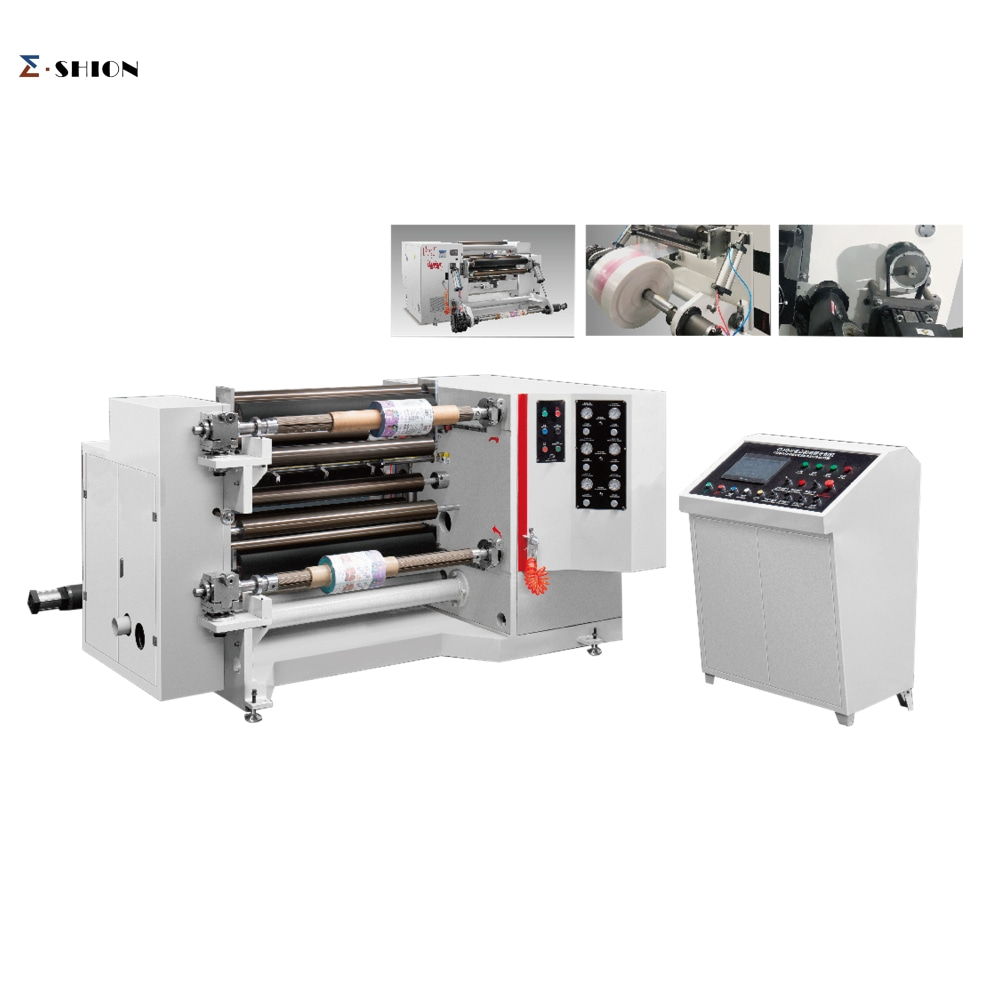

Automatic High speed Rewinding Slitting Machine

Main Features

• The slitting machine is suitable for cutting plastic films such as PE, PP, PET, PVC, composite film, color printing film, web, and so on.

• The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

• The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiency.

• The unwinding adopts the pneumatic brake brake, and the automatic calculation of the winding diameter by the PLC automatically realizes the automatic tension control and the EPC correction device.

• The reel is retracted by the gas rising shaft, and the automatic tension is incremented by PLC operation. (optional slip gas rise axis)

• The reel press roller push-pull clutch adopts a pneumatic device, and the pressure is controlled by the pressure regulating valve.

• The cutting machine adopts a round knife straight knife slitting device, and the end surface is neat, and the side waste air is sent.

  ---

  Main Technical Parameters

  Parameter	ESFQ-B1100	ESFQ-B1300	ESFQ-B1600
  Model	ESFQ-B1100	ESFQ-B1300	ESFQ-B1600
  Max. Width Of Raw Material	1100mm	1300mm	1600mm
  Max. Parent Web Diameter	800mm	800mm	800mm
  Max. Rewinding Diameter	600mm	600mm	600mm
  Max. Machine Speed	10-350m/min	10-350m/min	10-350m/min
  Thickness Of Raw Material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
  Total Power	14KW	16KW	19KW
  Machine Weight	3800kg	4300kg	4800kg
  Overall Dimensions	2650x2500x1350mm	2650x2750x1350mm	2650x3050x1350mm
  Min. Slitting Width	Round Blade: 30mm	Razor Blade: 30mm
