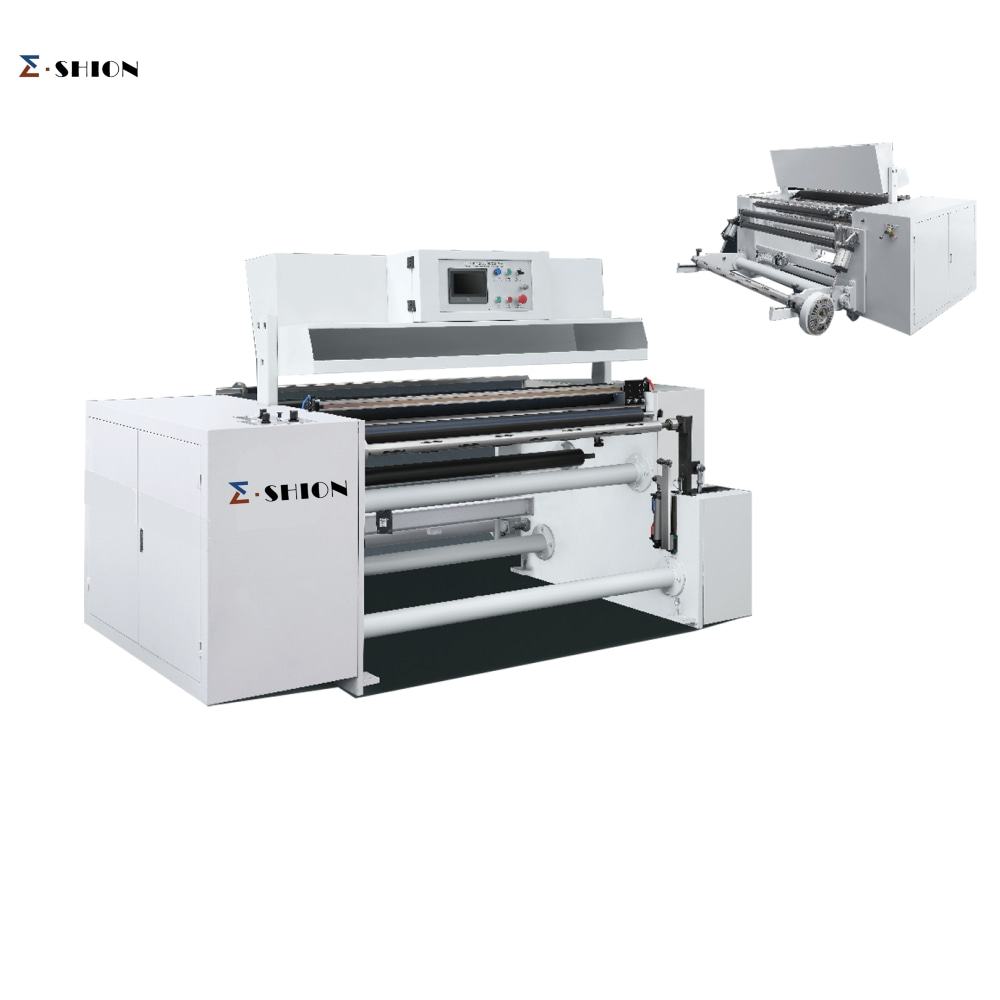

High Speed Automatic Rectifying Rewinding Machine

Use:

This machine is primarily used for re-winding and trimming various materials, including different types of papers, paper-plastic composites, films, and other decorative and packaging materials.

Main Features:

• Servo Fixed Length Feeding: Ensures high precision during high-speed operations by using servo motors for fixed-length feeding.

• PLC Touch Screen Metering: Automatically counts meters with a PLC touch screen, allowing for easy and precise meter setting.

• Slitting and Waste Discharge: Equipped with both round and straight knife slitting options and an automatic waste discharge device for efficient material handling.

• Pneumatic Reels: Utilizes pneumatic systems for automatic feeding, receiving, and discharging of reels, featuring an air expansion shaft for reliable operation.

• Automatic Cutting and Parking: Includes automatic cutting capabilities, free parking time settings, and pre-feeding functions to rewind and continue receiving materials seamlessly.

  ---

  Main Technical Parameters：

  Parameter	ESFJ-B1000	ESFJ-B1300	ESFJ-B1600
  Model	ESFJ-B1000	ESFJ-B1300	ESFJ-B1600
  Max. Parent Web Width	1000mm	130mm	1600mm
  Max. Parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
  Max. Rewinding Diameter	Φ300mm	Φ300mm	Φ300mm
  Max. Machine Speed	10–150m/min	10–150m/min	10–150m/min
  Fixed Length Accuracy	±5mm	±5mm	±5mm
  Total Power	3kw	3.5kw	4.5kw
  Machine Weight	1000kg	1200kg	1500kg
  Overall Dimensions	2600 × 2000 × 1600mm	2600 × 2200 × 1600mm	2600 × 2500 × 1600mm
  Working Voltage	Single-phase 220V/50HZ	Single-phase 220V/50HZ	Three-phase 380V/50HZ
  Paper Core Specification	25mm, 38mm, 50mm, etc. (or as per customer requirements)	25mm, 38mm, 50mm, etc. (or as per customer requirements)	25mm, 38mm, 50mm, etc. (or as per customer requirements)

  ---
