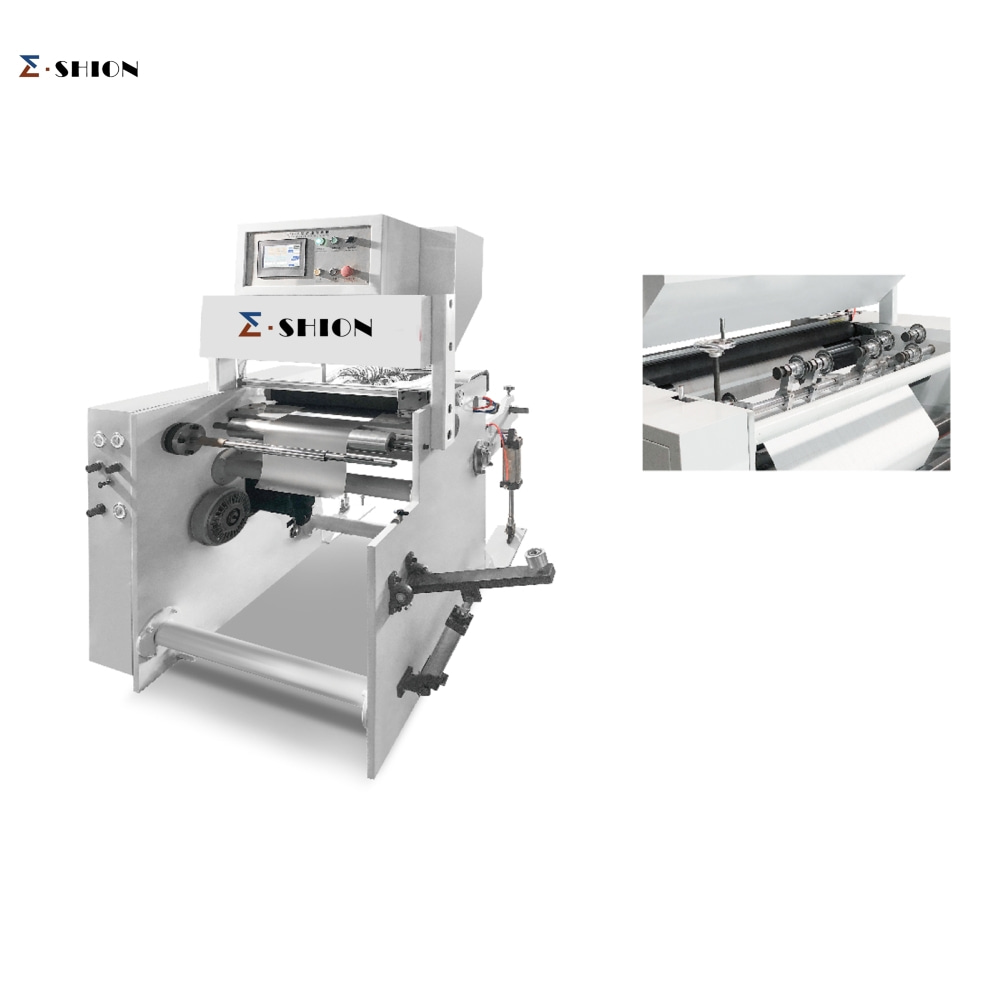

High Speed Rewinding Machine

Use

This machine is a special equipment for producing hard paper core, soft paper core, and other small webs (gift paper, advertising paper, wallpaper, various wrapping paper).

Main Features

• Unwinding: air pressure lifting unwinding frame, one-piece unwinding frame, etc.

• Winding: continuous air-up shaft, computer controlled automatic inflation and opening (can adjust the reel diameter arbitrarily).

• Cut off: use rodless cylinder reciprocating automatic partition.

• Main control: Servo motor fixed length feeding, high precision during high-speed operation. It has the functions of high fixed length precision, neat winding, simple operation, beautiful appearance, and stable performance. It can also form a production line with an automatic shrink packaging machine.

  ---

  Main Technical Parameters

  Parameter	ESFJ-600	ESFJ-800	ESFJ-1000
  Model	ESFJ-600	ESFJ-800	ESFJ-1000
  MAX. Parent Web Width	600mm	800mm	1000mm
  Max. Parent Web Diameter	600mm	600mm	600mm
  Max. Rewinding Diameter	260mm	260mm	260mm
  Max. Machine Speed	10-150m/min	10-150m/min	10-150m/min
  Fixed Length Accuracy	±5mm	±5mm	±5mm
  Total Power	2kw	2.3kw	3kw
  Machine Weight	1000kg	1200kg	1500kg
  Overall Dimensions	1300x1380x1600mm	1300x1600x1600mm	1300x1800x1600mm
  Working Voltage	Two-phase 220V 50Hz	Two-phase 220V 50Hz	Two-phase 220V 50Hz
  Paper Core Specification	20mm, 25mm, 38mm, etc. (or according to your requirement)	20mm, 25mm, 38mm, etc. (or according to your requirement)	20mm, 25mm, 38mm, etc. (or according to your requirement)
