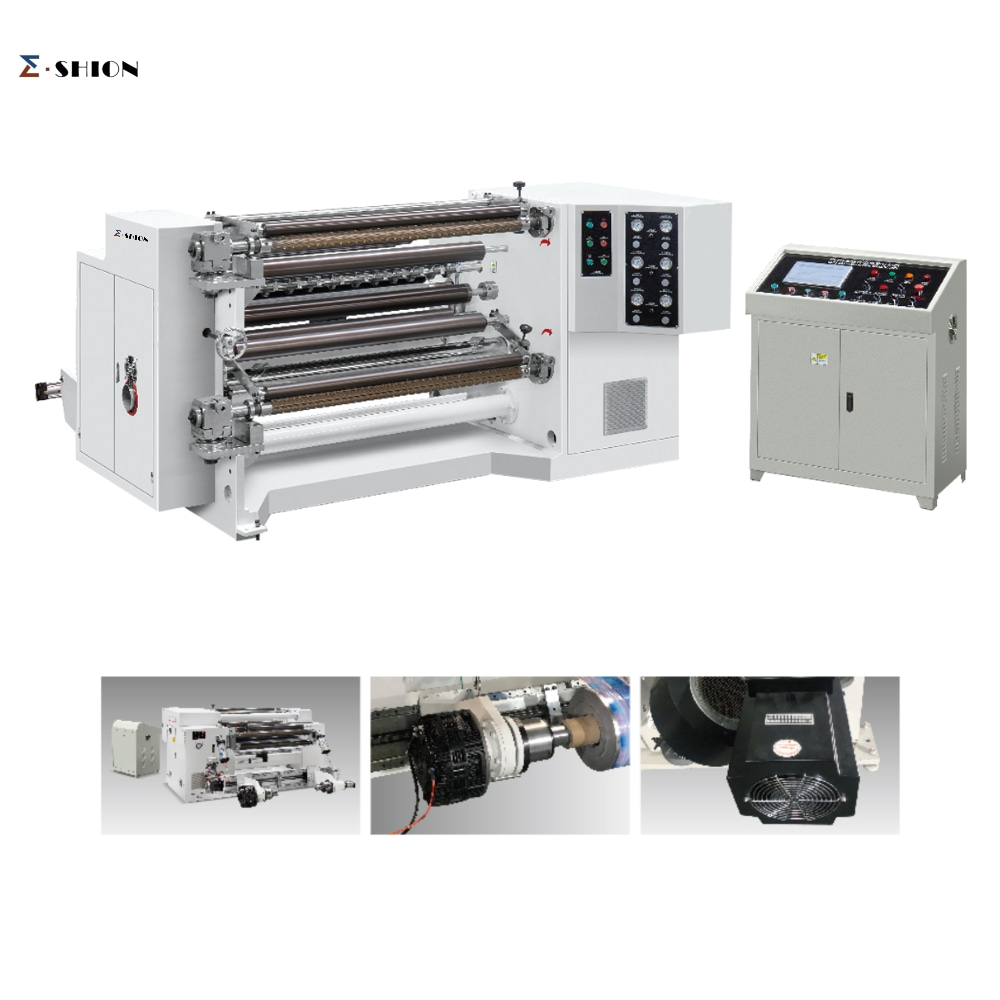

Automatic High Speed Rewinding Slitting Machine

Main Features of the Slitting Machine

• Versatile Compatibility: This slitting machine is designed for cutting a variety of films, including PE, PP, PET, PVC, and other plastic films, composite films, color films, and webs. It's an ideal choice for businesses involved in film and sheet secondary processing and color printing packaging.

• Advanced Control System: The entire machine is centrally controlled by a PLC (Programmable Logic Controller) and features a touch screen interface for intuitive operation.

• Efficient Unwinding Mechanism: The unwinding process is enhanced with shaftless loading and unloading capabilities. It includes pneumatic locking, electrically adjustable width, a pneumatic brake, and pneumatic lifting of the material roll for convenient handling and high efficiency. The PLC automatically calculates the winding diameter to achieve precise tension control.

• Reel Configuration: The reel incorporates a gas rise axis, with an optional slip gas rise axis available for additional flexibility.

• Pressure Control: Both the upper and lower pressure rollers of the take-up reel are equipped with pneumatic devices. The pressure applied by these rollers is meticulously controlled using a pressure regulating valve to ensure consistent performance.

• Slitting Precision: The machine utilizes a straight knife slitting device, which ensures a neat end surface and effectively manages edge scrap air. For applications involving paper, a round knife slitting device is available for purchase separately.

• Integrated System Functions: The system is equipped with a range of functionalities, including a starting buffer, parking anti-loose mechanism, metering length, constant speed, and roll diameter calculation, enhancing overall operational efficiency.

• Safety and Integration: The machine features a fully integrated design combining mechanical, electrical, and gas systems, along with comprehensive safety protection measures to ensure a secure working environment.

  ---
