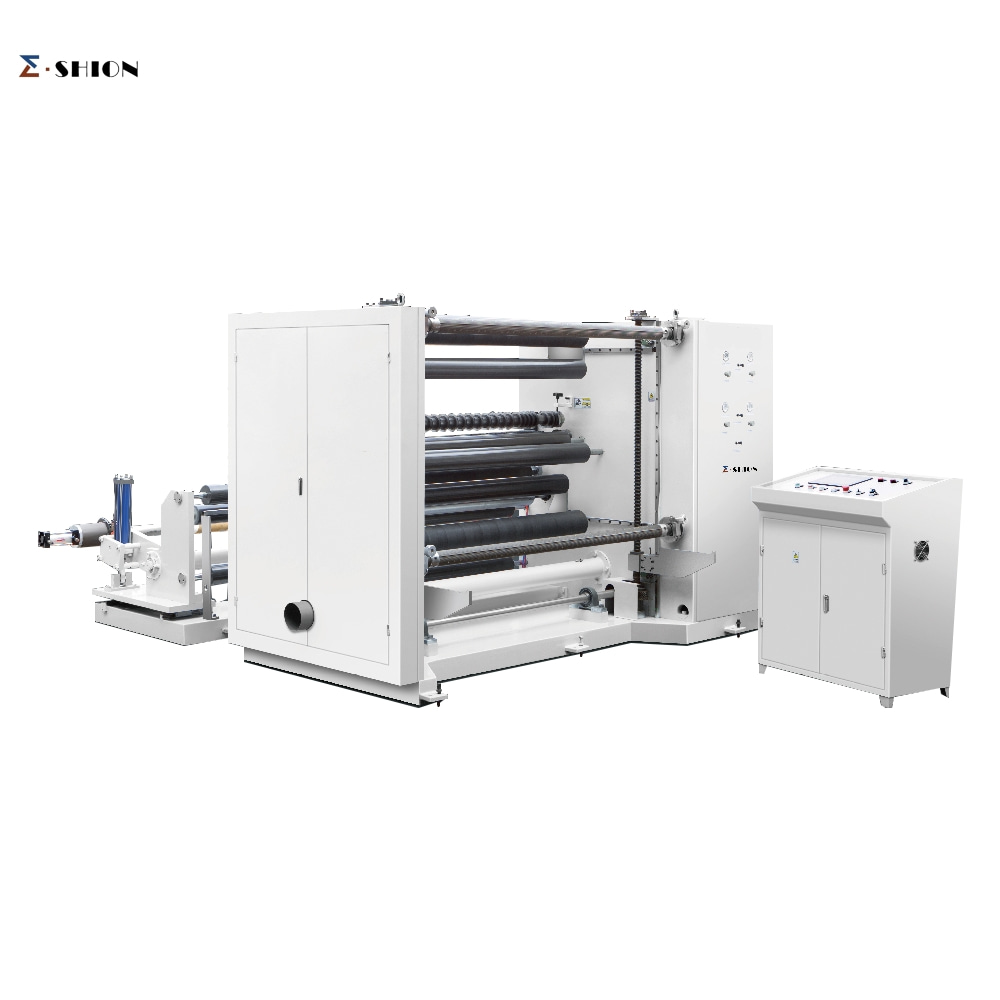

Computer High Speed Automatic Slitting Machine(Automatic Loading And Unloading）

Use

This machine is suitable for the slitting of various super-large coils, such as slitting and rewinding of 30g/m²-300g/m² kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil, and other coils.

Main Features

• The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding method. The main engine adopts frequency conversion speed regulation to maintain balanced operation during acceleration.

• Automatic metering and alarm function. The winding adopts the A and B air expansion shaft structure, and the unloading operation is convenient.

• Unwinding adopts a photoelectric automatic correction system to make irregular materials cut normally.

• The circular knife cuts the waste side with an automatic discharge device.

• Hydraulic automatic feeding, with an air expansion shaft.

• Rail type automatic cutting device.

  ---

  Main Technical Parameters

  Parameter	ESFQ-W1300	ESFQ-W1600
  Model	ESFQ-W1300	ESFQ-W1600
  Max. Width Of Raw Material	1300mm	1600mm
  Max. Parent Web Diameter	Φ1200mm	Φ1200mm
  Max. Rewinding Diameter	Φ1000mm	Φ1000mm
  Max. Machine Speed	10-300m/min	10-300m/min
  Total Power	19kw	23kw
  Machine Weight	4300kg	4800kg
  Overall Dimensions	2700×2900×1800mm	3000×2900×1800mm
  Min. Slitting Width	50mm	50mm
