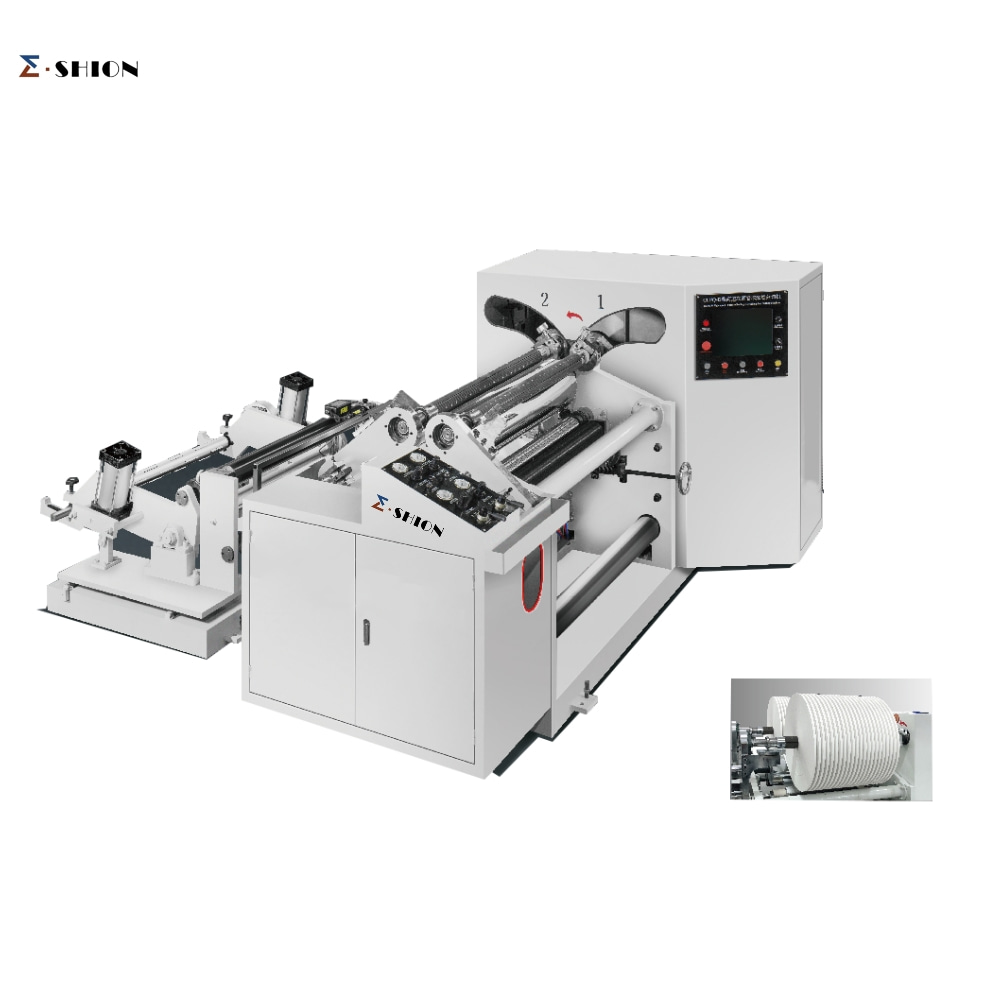

Rolling RewindingAnd Slitting Machine

USE：
The surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, plastic film, and insulating material. It is an ideal equipment for fine-cutting materials.

Main Features

• Unwinding automatic photoelectric correction, using shaft pneumatic feeding, magnetic powder brake or (pneumatic brake) automatic tension control.

• The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, with two-axis cross winding performed, never biting.

• The main drive is controlled by the inverter, driven by the variable frequency motor, ensuring stable and fast acceleration and deceleration.

• There are preset automatic meter counting, calculation of coil diameter, alarm shutdown, and other functions.

• Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.

• The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.

  ---

  Main Technical Parameters




  Parameter	ESFQ-D900	ESFQ-D1100	ESFQ-D1300
  Max. Width Of Raw Material	850mm	1050mm	1250mm
  Max. Parent Web Diameter	1000mm	1000mm	1000mm
  Max. Rewinding Diameter	680mm	680mm	680mm
  Max. Machine Speed	10-350m/min	10-350m/min	10-350m/min
  Thickness Of Raw Material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
  Total Power	14KW	16KW	19KW
  Machine Weight	3800kg	4300kg	4800kg
  Overall Dimensions	3500x2500x1450mm	3500x2700x1450mm	3500x2900x1450mm
  Min. Slitting Width	Round Blade: 3mm	Razor Blade: 3mm
