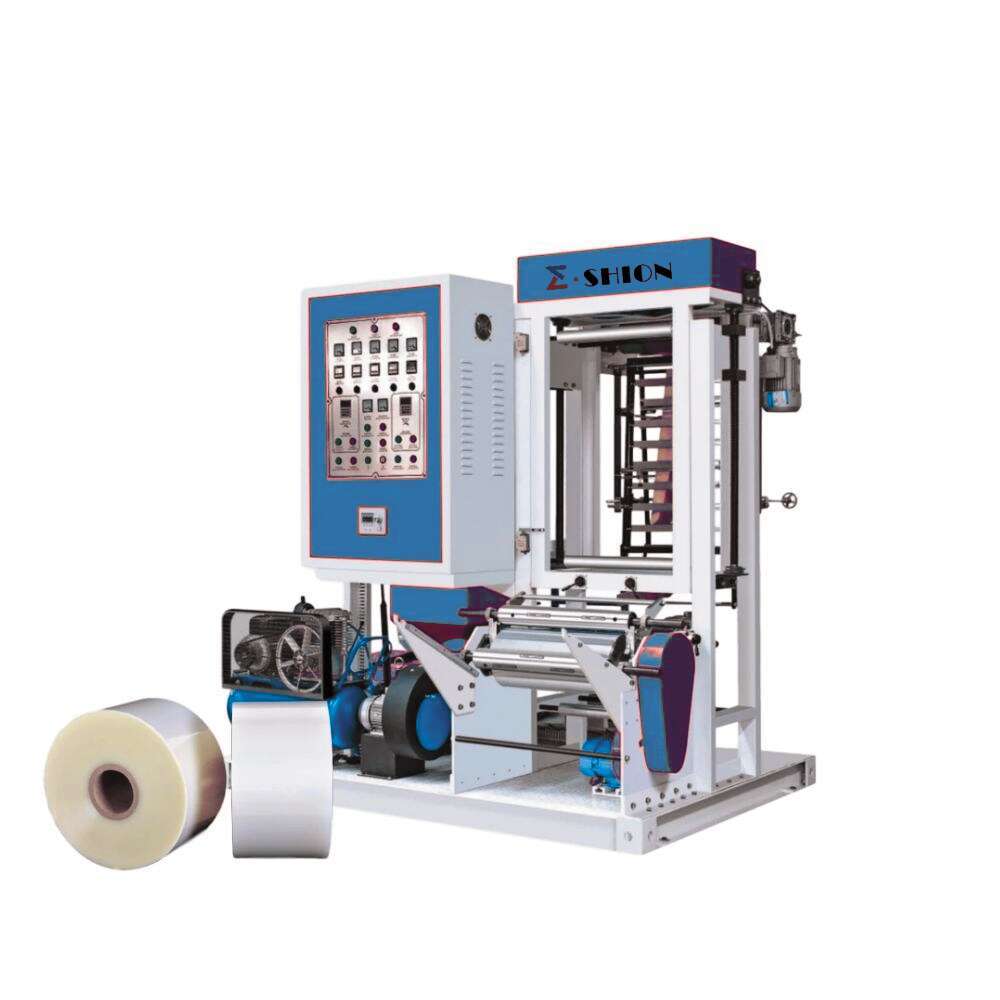

Mini Film Blowing Machine

It applies to blow various LDPE, HDPE and LLDPE plastic film, widely applying to food, fruit, clothing, textile, vest type bag and etc. Packing of civil industrial products.

shopping bag film machine 600mm 800mm film blowing extruder

It applies to blow various LDPE, HDPE and LLDPE plastic film, widely applying to food, fruit, clothing, textile, vest type bag and etc. Packing of civil industrial products.


Feature:
1. Main motor and take-up motor speed adjust by inverter. (Winder part has inverter control)
2. By pneumatic cylinder system to adjust the gap of take-up roller and embossing roller
3. Equipped with A-FORM wooden board to make the gusset, and the embossing roller.
4. Material of screw and barrel: 38CrMoAlA Polished with Nitrided Treatment
Hardness of heat treatment: screw HV≥740, barrel HV≥900
Depth of hardening:0.6-0.7mm
Brittleness grade: ≤2 grade
5. Gear box: Surface heat quenching and tempering/auto. Oil lubricated
6. Die material: Steel 40rMu surface treatment of flow channel: hard chrome- plating
7. Digital display temperature controller
8. Air compressor included
9. Die head is fixed type with Al air rings
10. Single winder with two station rollers
11. Lift traction
12. All motors have gear box, except the lift traction motor.
