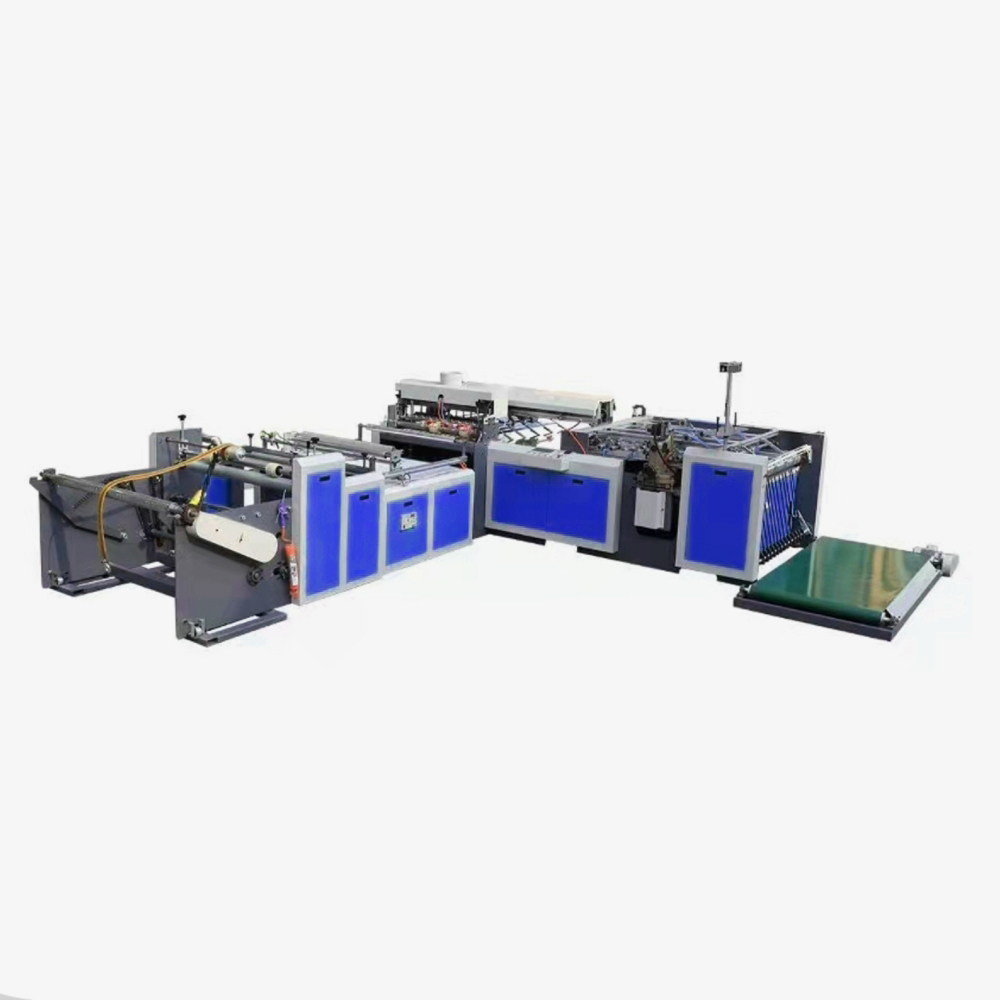

PP Woven Bag Cutting & Sewing Machine

1. It automatically accomplishes the heat/cold cutting and bottom sewing at fixed length for color-printed or plain woven cloth roll, which saves much labor forces.

2. It adopts touch screen for presetting, PLC for controlling and servo motor for driving in order to control the length of sack precisely.

3. The mouth of bag is easy to open and won’t be conglutinated after heat cutting.

4. With automatic counting, the finished sacks can be delivered in batches.

5. With pneumatic roll-installing, it’s so convenient.

Type: ES-SCDII-1200*800

Max. Diameter of cloth roller(mm): 1200mm

Cutting length(mm): 600-1200mm

Folding width (mm): 20-30

Sewing unit：Made in China

Gross power (KW): 6KW

Outline size (L*W*H)(mm): 5100*1800*1200

Max. Cutting width (mm): 800mm

Cutting precision (mm): ±4mm

Production capacity(pcs/min):20-48

Weight(KG): 2200kg

Machine size (L*W*H):6000*6000*1500mm
